Positive Displacement Flow Meters

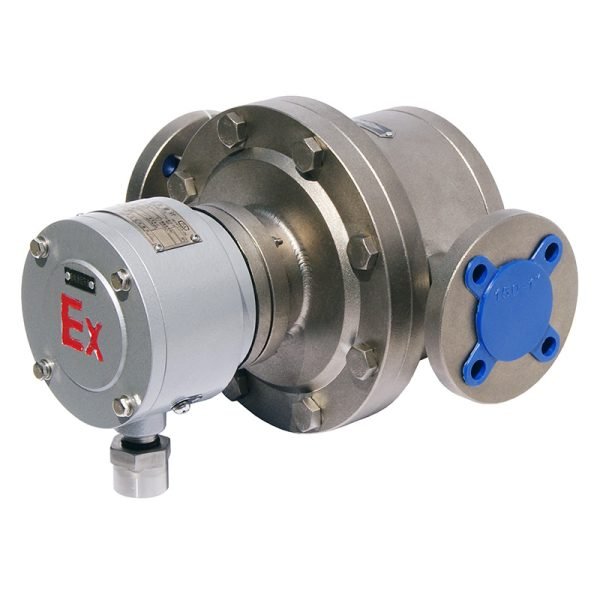

Oval Gear PD Flow Meter MT-LC
Product codeMT-LC
Optimized for higher viscosity liquid measurement. Not sensitive to the viscosity change.
Product Highlights
- Optimized for higher viscosity liquid measurement.
- Not sensitive to the viscosity change.
- Simple installation without requiring straight pipe runs.
- Accuracy
- Standard: ±0.5 %, Optional: ±0.2 %
- Measuring Range
- 0.05 to 340 m³/h
- Medium Temperature Range
- Standard: (-20～+60) ℃ ， Optional: (-41～+60) ℃
- Max. Process Pressure
- 63 bar
Please feel free to contact us for Datasheet.
- SKU
- MT-LC
- Accuracy
- Standard: ±0.5 %, Optional: ±0.2 %
- Measuring Range
- 0.05 to 340 m³/h
- Medium Temperature Range
- Standard: (-20～+60) ℃ ， Optional: (-41～+60) ℃
- Max. Process Pressure
- 63 bar
Optimized for higher viscosity liquid measurement. Not sensitive to the viscosity change.
Features
- Optimized for higher viscosity liquid measurement.
- Not sensitive to the viscosity change.
- Simple installation without requiring straight pipe runs.
Applications
- Fuel and diesel transfer
- Lubricant and oil batching
- Viscous liquid process lines
- Repeatable liquid inventory control
Specifications
- Product code
- MT-LC
- Accuracy
- Standard: ±0.5 %, Optional: ±0.2 %
- Measuring Range
- 0.05 to 340 m³/h
- Medium Temperature Range
- Standard: (-20～+60) ℃ ， Optional: (-41～+60) ℃
- Max. Process Pressure
- 63 bar
