Thermal Mass Flow Meters

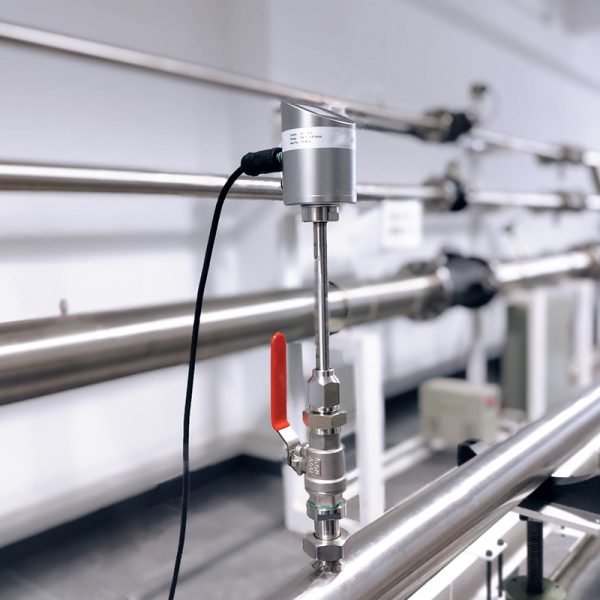

Insertion Thermal Mass Flow Meter (MT221x)
Product codeMT221x
Pipe Size: DN20 to 300 Ultra-wide 1:2500 turndown ratio
Product Highlights
- Pipe Size: DN20 to 300
- Ultra-wide 1:2500 turndown ratio
- The measuring range is from 0.1 Nm/s to 250 Nm/s.
- Accuracy
- Standard: ±(1.5% RD + 0.3% FS) , Optional: ±1% RD
- Measuring Range
- 0.1 to 63617 Nm³/h
- Medium Temperature Range
- -40 to 302°F (-40 to 150°C)
- Max. Process Pressure
- 63 bar (913.74 psi)
Please feel free to contact us for Datasheet.
- SKU
- MT221x
- Accuracy
- Standard: ±(1.5% RD + 0.3% FS) , Optional: ±1% RD
- Measuring Range
- 0.1 to 63617 Nm³/h
- Medium Temperature Range
- -40 to 302°F (-40 to 150°C)
- Max. Process Pressure
- 63 bar (913.74 psi)
Pipe Size: DN20 to 300 Ultra-wide 1:2500 turndown ratio
Features
- Pipe Size: DN20 to 300
- Ultra-wide 1:2500 turndown ratio
- The measuring range is from 0.1 Nm/s to 250 Nm/s.
Applications
- Compressed air monitoring
- Industrial gas measurement
- Burner and process air service
- Energy and utility accounting
Specifications
- Product code
- MT221x
- Accuracy
- Standard: ±(1.5% RD + 0.3% FS) , Optional: ±1% RD
- Measuring Range
- 0.1 to 63617 Nm³/h
- Medium Temperature Range
- -40 to 302°F (-40 to 150°C)
- Max. Process Pressure
- 63 bar (913.74 psi)
Request a Quote
Share your contact details and process requirements. Our applications engineer will review the product configuration and respond with the next steps.
